Getting Started with IViS & MeerKAT¶
This notebook demonstrates a basic example of using IViS’s single-frequency model to perform imaging with mosaicking, using five MeerKAT beams.
Note: IViS takes Measurement Sets as input and expects a set of Primary Beam FITS files to be placed in the
BEAMS/directory.
Download¶
You can download the data directory data_tutorials using:
wget https://www.mso.anu.edu.au/~amarchal/shared/ivis/data_tutorials.zip
unzip data_tutorials.zip -d data_tutorials
rm data_tutorials.zip
Kindly provided by Enrico Di Teodoro (UniFI) and Karlie Noon (RSAA/ANU).
Using IViS¶
import glob
from tqdm import tqdm as tqdm
import numpy as np
import matplotlib.pyplot as plt
from astropy.io import fits
from radio_beam import Beam
from astropy import units as u
from reproject import reproject_interp
from ivis.io import DataProcessor
from ivis.imager import Imager3D
from ivis.logger import logger
from ivis.readers import CasacoreReader
from ivis.types import VisIData
from ivis.utils import dutils, fourier
from ivis.models import Classic3D
path_ms = "./data_tutorials/ivis_data/msl_mw/" #directory of measurement sets
path_beams = "./data_tutorials/ivis_data/BEAMS/" #directory of primary beams
path_sd = "./data_tutorials/ivis_data/" #path single-dish data
pathout = "./data_tutorials/ivis_data/" #path where data will be packaged and stored
#REF WCS INPUT USER
filename = "./data_tutorials/ivis_data/MW-C10_mom0th_NHI.fits"
target_header = fits.open(filename)[0].header
shape = (target_header["NAXIS2"],target_header["NAXIS1"])
#create data processor
data_processor = DataProcessor(path_ms, path_beams, path_sd, pathout)
[2026-04-04 13:55:24 UTC] [IViS] [info] [Initialize DataProcessor ]
[2026-04-04 13:55:24 UTC] [IViS] [info] -------------------------------------------------------------------------
[2026-04-04 13:55:24 UTC] [IViS] [info] Timestamp: 2026-04-04 13:55:24 UTC
[2026-04-04 13:55:24 UTC] [IViS] [info]
[2026-04-04 13:55:24 UTC] [IViS] [info] _ _| \ \ / _) ___|
[2026-04-04 13:55:24 UTC] [IViS] [info] | \ \ / | \___ \
[2026-04-04 13:55:24 UTC] [IViS] [info] | \ \ / | |
[2026-04-04 13:55:24 UTC] [IViS] [info] ___| \_/ _| _____/
[2026-04-04 13:55:24 UTC] [IViS] [info]
[2026-04-04 13:55:24 UTC] [IViS] [info] Version 1.0.0
[2026-04-04 13:55:24 UTC] [IViS] [info] IViS is released as open-source software
[2026-04-04 13:55:24 UTC] [IViS] [info] Author: @amarchal
[2026-04-04 13:55:24 UTC] [IViS] [info] Documentation: https://ivis-dev.readthedocs.io/en/latest/
[2026-04-04 13:55:24 UTC] [IViS] [info] Github: https://github.com/antoinemarchal/ivis
[2026-04-04 13:55:24 UTC] [IViS] [info] -------------------------------------------------------------------------
Precompute PB and interpolation grid for mosaicking¶
# pre-compute pb and interpolation grids — this can be commented after first compute
logger.disabled = True
data_processor.compute_pb_and_grid(target_header, fitsname_pb="reproj_pb.fits", fitsname_grid="grid_interp.fits")
logger.disabled = False
100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 5/5 [00:02<00:00, 1.95it/s]
pb, grid = data_processor.read_pb_and_grid(fitsname_pb="reproj_pb.fits", fitsname_grid="grid_interp.fits")
Set SD data if needed (not used here)¶
#Dummy sd array
sd = np.zeros(shape)
#Dummy Beam sd
beam_sd = Beam(1*u.deg, 1*u.deg, 1.e-12*u.deg)
Choose user parameters¶
#user parameters
max_its = 20
lambda_sd = 0
lambda_r = 1
cost_device = 0#"cpu" #0 is GPU and "cpu" is CPU
optim_device = 0#"cpu" #0 is GPU and "cpu" is CPU
positivity = False
#init parameters
init_params = np.zeros((1, shape[0], shape[1]), dtype=np.float32)
Read data¶
# -------------------
# Read visibilities into VisIData dataclass
# -------------------
reader = CasacoreReader(
prefer_weight_spectrum=False,
keep_autocorr=False,
n_workers=4)
I: VisIData = reader.read_blocks_I(
path_ms,
uvmin=0.0,
uvmax=np.inf,
chan_sel=slice(0, 1),
)
[2026-04-04 13:59:37 UTC] [IViS] [info] [BLOCK] Loading block from: ./data_tutorials/ivis_data/msl_mw/
[2026-04-04 13:59:37 UTC] [IViS] [info] [BLOCK] Loading 5/5 beam(s) from: ./data_tutorials/ivis_data/msl_mw/
[2026-04-04 13:59:37 UTC] [IViS] [info] [BLOCK] Parallel read with 4 workers (order-preserving; selective)
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Opening: ./data_tutorials/ivis_data/msl_mw/MW-C10_3_MW_chan_-32kms.ms
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Opening: ./data_tutorials/ivis_data/msl_mw/MW-C10_1_MW_chan_-32kms.ms
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Opening: ./data_tutorials/ivis_data/msl_mw/MW-C10_4_MW_chan_-32kms.ms
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Opening: ./data_tutorials/ivis_data/msl_mw/MW-C10_2_MW_chan_-32kms.ms
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Done: MW-C10_1_MW_chan_-32kms.ms rows=626313
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Opening: ./data_tutorials/ivis_data/msl_mw/MW-C10_5_MW_chan_-32kms.ms
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Done: MW-C10_2_MW_chan_-32kms.ms rows=1068720
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Done: MW-C10_4_MW_chan_-32kms.ms rows=1140552
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Done: MW-C10_3_MW_chan_-32kms.ms rows=1140552
[2026-04-04 13:59:37 UTC] [IViS] [info] [MS] Done: MW-C10_5_MW_chan_-32kms.ms rows=1098366
[2026-04-04 13:59:37 UTC] [IViS] [info] [BLOCK] Done: nchan=1, nbeam=5, nvis_max=1140552 (read 5/5 beams)
Initialize Imager and process¶
# create image processor
image_processor = Imager3D(I, # visibilities
pb, # array of primary beams
grid, # array of interpolation grids
sd, # single dish data in unit of Jy/arcsec^2
beam_sd, # beam of single-dish data in radio_beam format
target_header, # header on which to image the data
init_params, # init array of parameters
max_its, # maximum number of iterations
lambda_sd, # hyper-parameter single-dish
positivity, # impose a positivity constaint
cost_device, # device: 0 is GPU; "cpu" is CPU
optim_device,
beam_workers=1)
# choose model
model = Classic3D(lambda_r=lambda_r)
# get image
result = image_processor.process(model=model, units="Jy/arcsec^2") #"Jy/arcsec^2" or "K"
[2026-04-04 13:59:39 UTC] [IViS] [info] CUDA unavailable or invalid index; using CPU.
[2026-04-04 13:59:39 UTC] [IViS] [info] CUDA unavailable or invalid index; using CPU.
[2026-04-04 13:59:39 UTC] [IViS] [info] [Initialize Imager3D ]
[2026-04-04 13:59:39 UTC] [IViS] [info] Number of iterations to be performed by the optimizer: 20
[2026-04-04 13:59:39 UTC] [IViS] [warning] lambda_sd = 0 — No short-spacing correction.
[2026-04-04 13:59:39 UTC] [IViS] [info] Optimizer not bounded - Positivity == False
[2026-04-04 13:59:39 UTC] [IViS] [info] Units of output: Jy/arcsec^2.
[2026-04-04 13:59:39 UTC] [IViS] [info] Starting optimisation: PyTorch LBFGS on cpu (unconstrained); cost on cpu
[2026-04-04 13:59:40 UTC] [IViS] [info] [PID 94601] [Iter 1/20] Iter cost: 2.051792e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:41 UTC] [IViS] [info] [PID 94601] [Iter 2/20] Iter cost: 1.943055e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:42 UTC] [IViS] [info] [PID 94601] [Iter 3/20] Iter cost: 1.884155e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:43 UTC] [IViS] [info] [PID 94601] [Iter 4/20] Iter cost: 1.874843e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:45 UTC] [IViS] [info] [PID 94601] [Iter 5/20] Iter cost: 1.868133e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:46 UTC] [IViS] [info] [PID 94601] [Iter 6/20] Iter cost: 1.862304e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:47 UTC] [IViS] [info] [PID 94601] [Iter 7/20] Iter cost: 1.858662e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:48 UTC] [IViS] [info] [PID 94601] [Iter 8/20] Iter cost: 1.855631e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:49 UTC] [IViS] [info] [PID 94601] [Iter 9/20] Iter cost: 1.853403e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:50 UTC] [IViS] [info] [PID 94601] [Iter 10/20] Iter cost: 1.851784e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:51 UTC] [IViS] [info] [PID 94601] [Iter 11/20] Iter cost: 1.850396e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:53 UTC] [IViS] [info] [PID 94601] [Iter 12/20] Iter cost: 1.849463e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:54 UTC] [IViS] [info] [PID 94601] [Iter 13/20] Iter cost: 1.848760e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:55 UTC] [IViS] [info] [PID 94601] [Iter 14/20] Iter cost: 1.848084e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:56 UTC] [IViS] [info] [PID 94601] [Iter 15/20] Iter cost: 1.847788e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:57 UTC] [IViS] [info] [PID 94601] [Iter 16/20] Iter cost: 1.847216e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:58 UTC] [IViS] [info] [PID 94601] [Iter 17/20] Iter cost: 1.847008e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 13:59:59 UTC] [IViS] [info] [PID 94601] [Iter 18/20] Iter cost: 1.846706e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 14:00:01 UTC] [IViS] [info] [PID 94601] [Iter 19/20] Iter cost: 1.846417e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 14:00:02 UTC] [IViS] [info] [PID 94601] [Iter 20/20] Iter cost: 1.846119e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 14:00:03 UTC] [IViS] [info] [PID 94601] [Iter 21/20] Iter cost: 1.845987e+06 (optim_dev=cpu, cost_dev=cpu)
[2026-04-04 14:00:03 UTC] [IViS] [info] [Timing] LBFGS (optim_dev=cpu, cost_dev=cpu) took 24.01 s; final loss=2.05179e+06; closure_calls=21
[2026-04-04 14:00:03 UTC] [IViS] [info] Successful run. Please clap.
Compute effective PB for mosaic¶
#mean pb
filenames = sorted(glob.glob(path_beams+"*.fits"))
n_beams = len(filenames)
pb_all = np.zeros((n_beams,result[0].shape[0],result[0].shape[1]))
w = dutils.wcs2D(target_header)
for i in tqdm(np.arange(n_beams)):
#open beam cube
hdu_pb = fits.open(filenames[i])
hdr_pb = hdu_pb[0].header
pb2 = hdu_pb[0].data
pb2[pb2 != pb2] = 0.
w_pb = dutils.wcs2D(hdr_pb)
pb2, footprint = reproject_interp((pb2,w_pb.to_header()), w.to_header(), shape)
pb2[pb2 != pb2] = 0.
pb_all += pb2
pb_mean = np.nanmean(pb_all,0)
pb_mean /= np.nanmax(pb_mean)
mask = np.where(pb_mean > 0.05, 1, np.nan)
100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 5/5 [00:05<00:00, 1.07s/it]

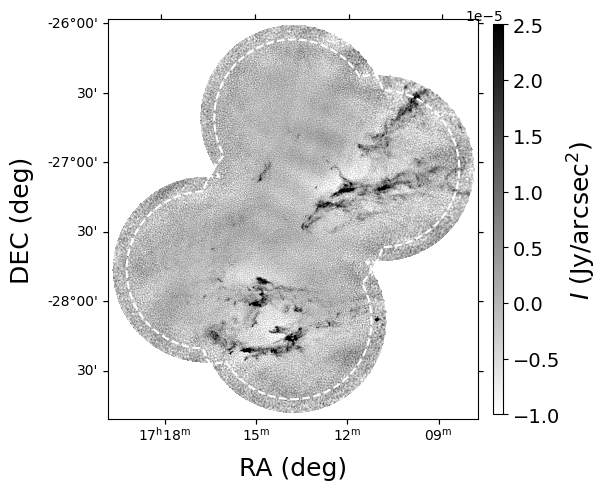

Plot result¶
#PLOT RESULT
fig = plt.figure(figsize=(5, 5))
ax = fig.add_axes([0.1,0.1,0.78,0.8], projection=w)
ax.set_xlabel(r"RA (deg)", fontsize=18.)
ax.set_ylabel(r"DEC (deg)", fontsize=18.)
img = ax.imshow(result[0]*mask, vmin=-1.e-5, vmax=2.5e-5, origin="lower", cmap="gray_r")
ax.contour(pb_mean, linestyles="--", levels=[0.05, 0.2], colors=["w","w"])
colorbar_ax = fig.add_axes([0.89, 0.11, 0.02, 0.78])
cbar = fig.colorbar(img, cax=colorbar_ax)
cbar.ax.tick_params(labelsize=14.)
cbar.set_label(r"$I$ (Jy/arcsec$^{2})$", fontsize=18.)
# plt.savefig(pathout + 'ivis_result_cloud_MeerKAT.png', format='png', bbox_inches='tight', pad_inches=0.02, dpi=400)
